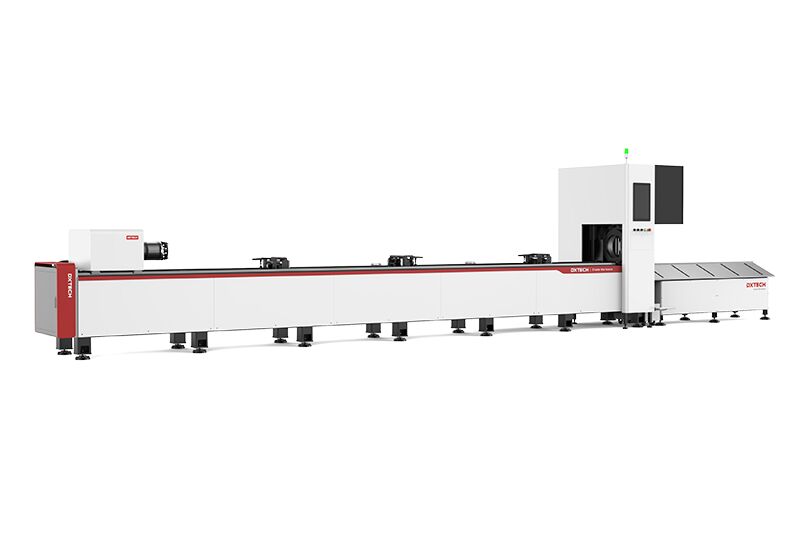

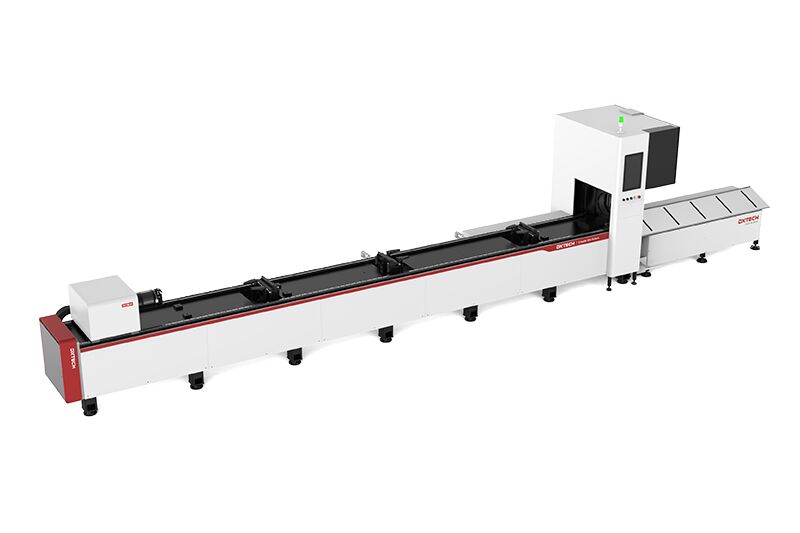

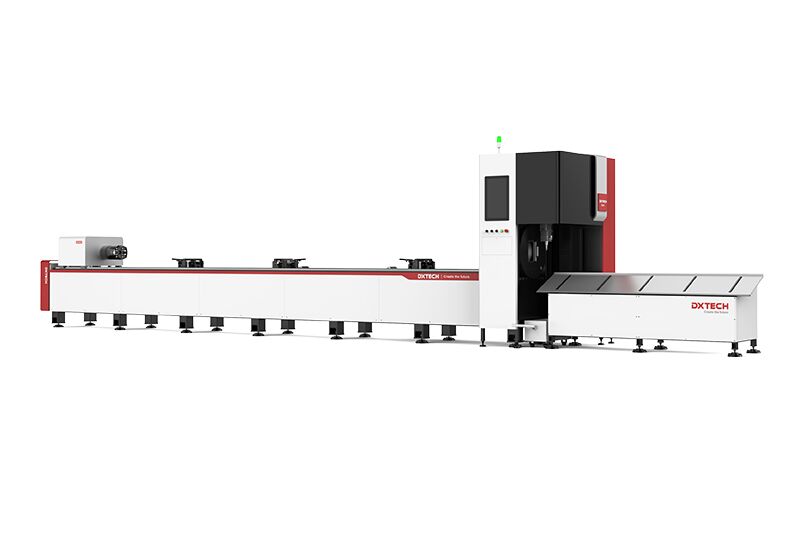

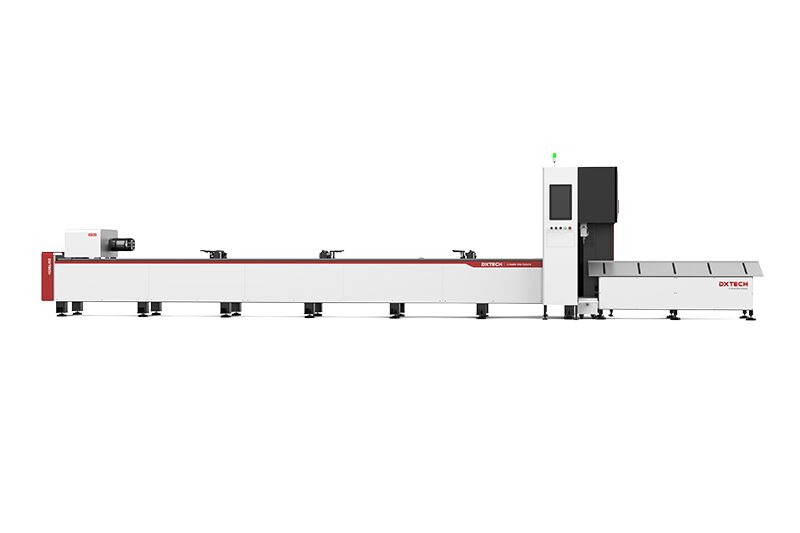

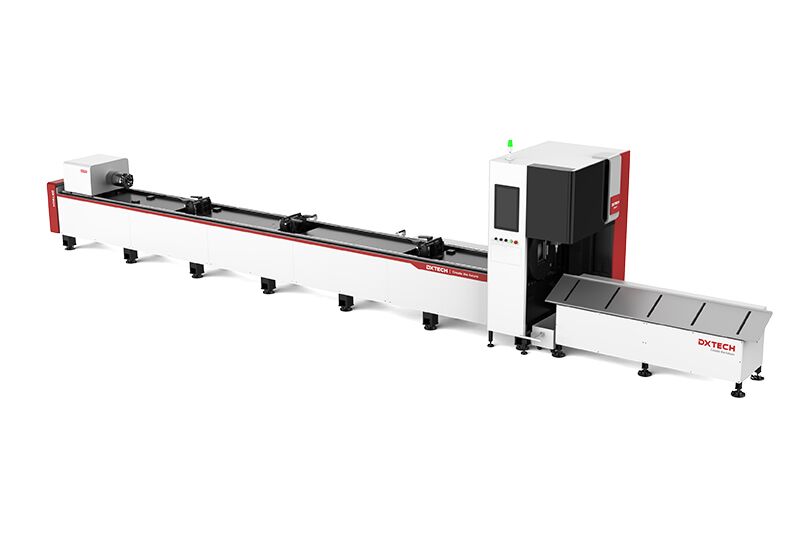

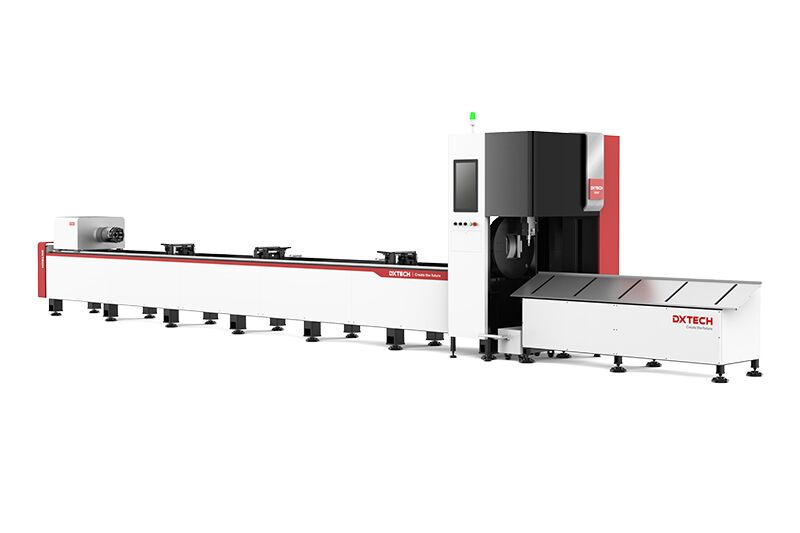

DXTECH TK6240 3KW CNC Laser Pipe Cutting Machine with Follow-up Support System for Sale in Malaysia
Price :
$47.000.00 /Set
Price Range :
$45,000.00 – $65,000.00
DXTECH’s new 3KW TK6240 CNC laser pipe cutting machine is designed for tubes. It is a metal tube laser cutter that is very suitable for cutting standard tubes and is positioned for efficient cutting of medium-sized tubes. This fiber laser cutting machine improves cutting quality and cutting efficiency. Tubes and rectangular tubes can be fed fully automatically without manual operation. Fast corner response greatly improves cutting efficiency. After cutting, the workpiece can be automatically unloaded in different areas and is equipped with a follow-up support device. It is very suitable for cutting standard tubes such as round tubes, square tubes, rectangular tubes, etc. Most special-shaped tubes and open-type materials can be processed, such as hexagonal tubes, elliptical tubes, channel steels, angle steels, H-shaped steels, I-beams, etc.
DXTECH TK6240 3KW CNC Laser Pipe Cutting Machine with Follow-up Support System for Sale in Malaysia
Laser CNC Machines Video
DXTECH TK6240 CNC Laser Pipe Cutting Machine with Follow-up Support System for Sale in Malaysia
CNC Laser Pipe Cutting Machine Advantages
1. Heavy-duty mechanical structure
Adopts square tube welded integrated bed. More stable and durable, high-strength machine tool adopts 600℃ stress relief annealing treatment, strong structural rigidity, small deformation, small vibration, and guaranteed cutting accuracy.
2. Pneumatic self-centering chuck
The precision pneumatic chuck is stable and reliable, with the advantages of high precision, fast speed, self-centering gear linkage, and strong pipe bearing capacity, which can reach 120kg. It has a one-button automatic loosening structure, which can automatically center and pneumatically open the clamp, with constant clamping force, heavy pipes will not loosen or slip, ensuring cutting accuracy, and can clamp square pipes, round pipes, oval pipes, rectangular pipes, channel steels, angle steels, I-beams and other pipes.
3. Follow-up support device
The machine tool is equipped with three sets of follow-up support pipe structures. The subsequent support technology of the laser tube cutting machine can automatically adjust the cutting speed, processing thickness, angle and other parameters according to different processing conditions to achieve fine cutting and high-precision processing.
4. Intelligent control system
Equipped with an intelligent control system, its simple operation interface allows operators to quickly get started and use it proficiently without complicated training. With the tube nesting software TubesT, it can realize automatic layout cutting, common edge cutting, and finished product blanking, which improves processing efficiency and saves time and materials.
In general, this latest laser tube cutting machine with a follow-up device has greatly improved the accuracy, stability and efficiency of laser cutting due to the introduction of follow-up support technology, reducing costs, and improving processing quality and production benefits.
DXTECH TK6240 CNC Laser Pipe Cutting Machine with Follow-up Support System for Sale in Malaysia
Fully automatic double pneumatic chuck
1) One-click chuck opening and automatic centering will reduce the waiting time for loading and unloading.
2) Pneumatic open clamp: with large and constant clamping force, the heavy pipe is not loose or slipped, which guarantees the cutting accuracy.
3) The special support frame can avoid the sagging deformation of the pipe, improve the cutting accuracy, and prolong the service life of the chuck.
TubePro tube cutting software
Tube cutting system
It is a professional tube cutting system, which can realize automatic centering and eccentric compensation of metal pipes to ensure cutting accuracy.
Common edge cutting:
It can reduce the residual material and save the production cost.
Corner cutting process:
The corners are not burnt, and the section quality is good.
Intelligent focusing laser head
Cooling:
both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing aperture:
through the 35 mm aperture, the interference of stray light is effectively reduced.
Autofocus:
without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Technical Parameters
| Model | TK6240/TK9240 | |||
| Max. tube length | 6.5/9.2m | |||
| Tube shape | Round/square/rectangular | |||
| Max. tube weight | 350kg 55kg/m | |||
| Positioning accuracy | ±0.03mm | |||
| Repositioning accuracy | ±0.02mm | |||
| Chuck | Two pneumatic chucks | |||
| Max. chuck rotating speed | 130r/min | |||
| Laser power | 3kW – 6kW | |||
| Laser | Multiple options | |||
| Clamping range | Φ20-Φ240mm □20 – □170mm |
DXTECH TK6240 CNC Laser Pipe Cutting Machine with Follow-up Support System for Sale in Malaysia
Application
The CNC laser pipe cutting machine is dedicated to cutting various metal tubes and pipes in round, square, rectangular, and elliptical shapes. In addition, it can also cut L-, H-, U-shaped steel bars and cut complex patterns out from these tubes and pipes. The metal tube laser cutting machine is widely used in decoration, furniture, automotive parts, construction, artworks, and other industries.
DXTECH TK6240 CNC Laser Pipe Cutting Machine with Follow-up Support System for Sale in Malaysia
