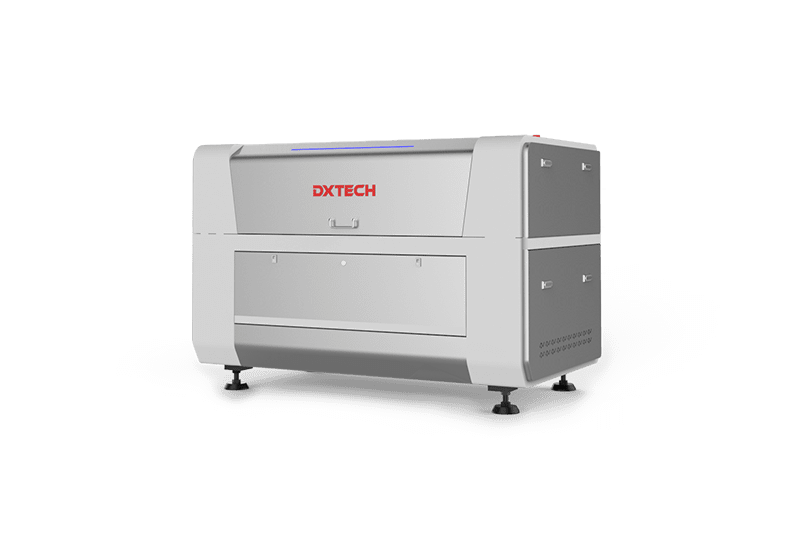

DXTECH Economical 1390 Co2 Laser Cutting Machine for Plywood, Plastic, PVC Price in Uzbekistan/UZ
Price:
$3,500.00 /Set
Price Range :
$3,200.00 – $9,400.00

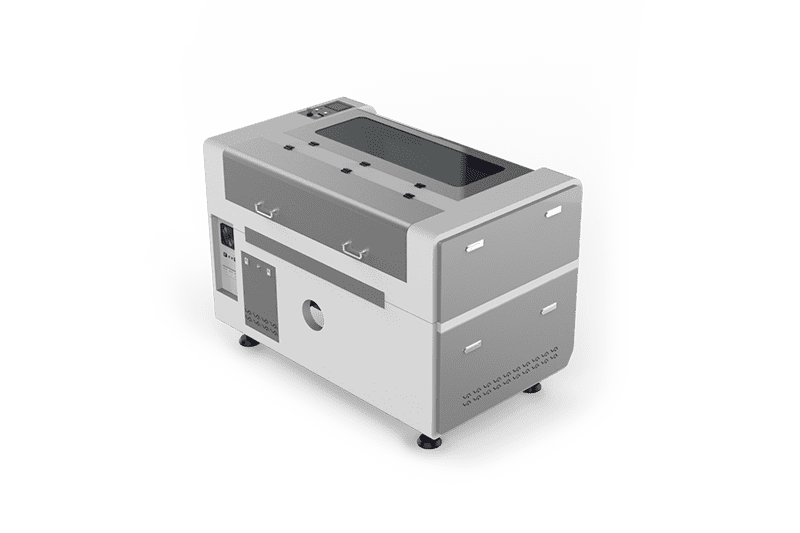

This machine is an economical CO2 laser engraving machine and cutting machine. Equipped with a special machine protection cover, which not only guarantees the personal safety of the operator, and it also makes the entire processing production more environmentally friendly. Besides that the protective cover can be removed, so it can meet the different processing needs of users.
DXTECH Economical 1390 Co2 Laser Cutting Machine for Plywood, Plastic, PVC Price in Uzbekistan
Laser CNC Machines Video
DXTECH Economical 1390 Co2 Laser Cutting Machine for Plywood, Plastic, PVC Price in Uzbekistan
Advantages
1. Equipped with the protection cover, it not only guarantees the personal safety of the operator, and also makes the entire processing production more environmentally friendly.

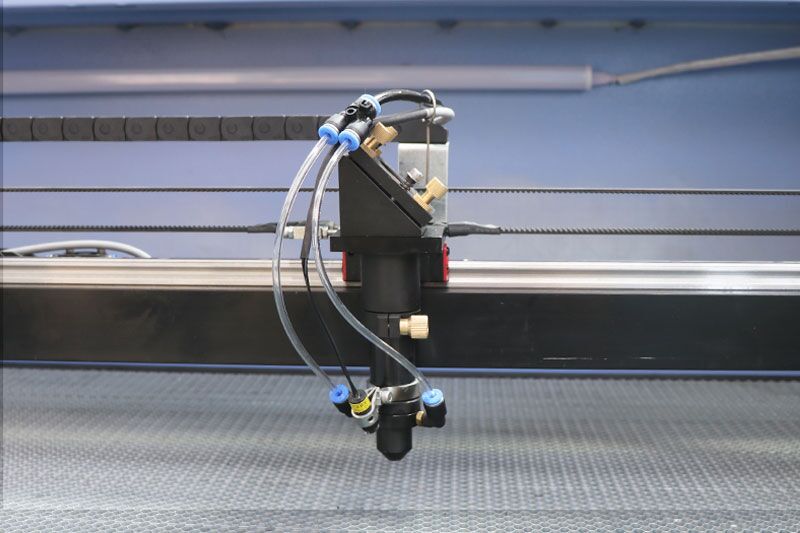

2. Adopting the imported laser head, it has the advantages of high processing accuracy, high speed and low noise.
3. With a wide range of applications, it widely used in advertising industry handicraft production, decoration, rubber plate furniture and other industries.
4. With High processing accuracy and the processing accuracy can reach 0.02 mm.
DXTECH Economical 1390 Co2 Laser Cutting Machine for Plywood, Plastic, PVC Price in Uzbekistan
Features
WIFI wireless control
One PC can control multiple machines at the same time.

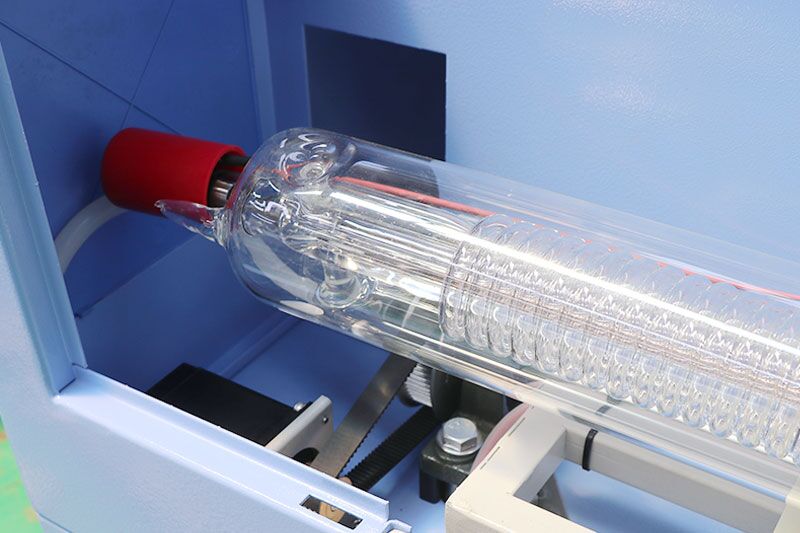

Laser tube
Stable performance, good spot quality and long service life.
Japan Omron Electronic components
More precise, maximize battery power efficiency.
Taiwan Rail
High positioning accuracy, low wear and long-term accuracy.
Stepper motor
It has the superior characteristics of instant start and rapid stop.
Water cooling
Good cooling effect, intelligent temperature control and long service life.
Technical Parameters
| Name: | DXTECH1390 Laser Wood Cutter Machine |
| Working area | 1300mmx900mm, optional: 600x900mm, 1600x1000mm, etc. |
| Laser power | RECI 130-150W, optional: 80W, 100W, 180W, |
| Laser type | Sealed Co2 laser source |
| Cooling | CW5200 Water cooling |
| Cutting speed | 1-1000mm/min |
| Cutting thickness | 0-25mm acrylic (others determined by materials) |
| Position system | Red dot |
| Support Graphic Format | DST, PLT, BMP, DXF |
| Motor&Drive | Stepper |
| Working voltage: | 220V, 50Hz |
| Working table: | Up and down working table |
| Packing: | Wooden box |
| Other | Air Pump, Exhaust Fan, Water Pipe, Toolbox, Focus Mirror, Reflector |
DXTECH Economical 1390 Co2 Laser Cutting Machine for Plywood, Plastic, PVC Price in Uzbekistan
| Material | Engraving | Cutting |
|---|---|---|
| Acrylic | ⩗ | ⩗ |
| PVC | ⩗ | ⩗ |
| Leather | ⩗ | ⩗ |
| Rubber | ⩗ | ⩗ |
| Fabric | ⩗ | ⩗ |
| Wood | ⩗ | ⩗ |
| Polywood | ⩗ | ⩗ |
| MDF | ⩗ | ⩗ |
| Laminate | ⩗ | ⩗ |
| Organic Board | ⩗ | ⩗ |
| Mat Board | ⩗ | ⩗ |
| Fiberglass | ⩗ | ⩗ |
| Plexiglass | ⩗ | ⩗ |
| Mylar | ⩗ | ⩗ |
| ABS | ⩗ | ⩗ |
| Paper | ⩗ | ⩗ |
| Cloth | ⩗ | ⩗ |
| Fabric | ⩗ | ⩗ |
| Glass | ⩗ | |
| Crystal | ⩗ | |
| Marble | ⩗ | |
| Painted metal | ⩗ | |
| Aluminum | ⩗ | |
| Ceramic | ⩗ | |
| Tile | ⩗ |
Application & Sample
The common processing materials of co2 engraving machine include acrylic, glass, wood, leather, cloth, plastic, two-color board, horn, cardboard, MDF, marble, and other non-metallic materials. And widely used in advertising processing, gift processing, packaging engraving, leather processing, fabric proofing, seal engraving, product marking, seal engraving and many other industries.
DXTECH Economical 1390 Co2 Laser Cutting Machine for Plywood, Plastic, PVC Price in Uzbekistan
