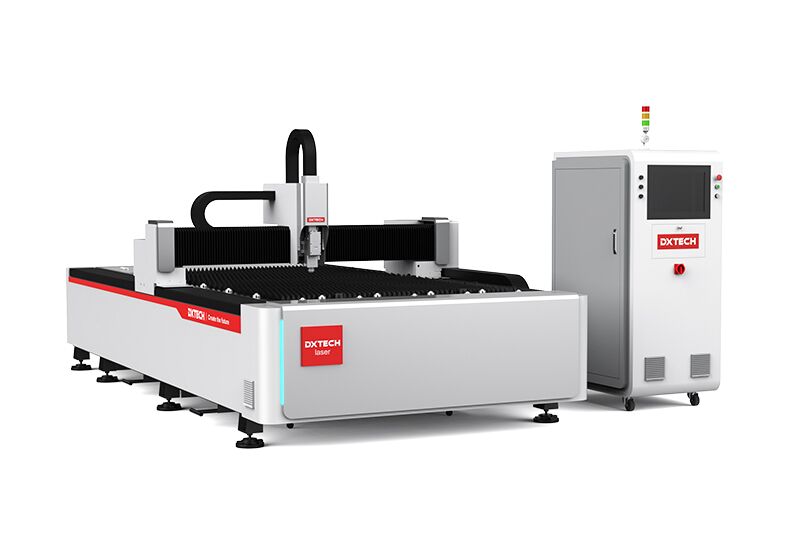

DXTECH-FP Economical Hot Sale Sheet Metal Fiber Laser Cutting Machine 3KW Laser Cutter for Sale in USA
Price:
$25,000.00 /Set
Price Range :
$15,000.00 – $60,000.00
DXTECH hot sale sheet metal fiber laser cutting machine is an ideal entry level laser cutter without any high purchase cost or training cost. With easy operation and simple maintenance, the flatbed fiber laser cutting machine provide users powerful cutting ability and efficiency. Therefore, it is a good choice for users to have an economical processing.
Metal Laser Cutting Machine mainly deals with stainless steel sheet cutting, iron plate cutting, aluminum sheet cutting etc.
Comes With?
◆ Water Cooler
◆ Transformer
◆ Stabilizer
◆ Laser Source
◆ 2-year Warranty
◆ Free Installation Training
Laser CNC Machines Video
GOLD
ALUMINUM
COPPER
BRASS
STEEL
TITANIUM
SILVER
IRON
This fiber laser cutting machine can cut most metal materials, if you need to cut non-metal materials, please contact us.
DXTECH has more than 10 international quality certifications, ISO9001, EU CE certification, FDA certification, UL, CSA certification, COC, SGS, etc.
hot sale Sheet metal fiber Laser Cutting Machine advantages
1. Simple operating system, to realize rapid cutting on the shape what you want on the metal material, like Steel, Iron, Aluminum Plate, Carbon steel, Stainless steel, Cooper, and galvanized sheet .
2.Independent control cabinet
1) Dust proof: all electrical components and laser sources are built in an independent control cabinet to prevent dust pollution.
2) Automatic thermostat: equipped with an automatic constant temperature air conditioner, which can prevent the damage to the components due to the high temperature.
3. Aviation aluminum alloy beam to ensure the running speed is up to 150m/min.
4. World-class components like guide rails and racks to guarantee the cutting accuracy.
5. The strong iron flatbed to keep the machine for 20 years without distortion.
6. When considering sheet metal laser cutting prices, laser cutting has a higher quality cutting edge, it saves money and time cost if we count all cost all.
Hot Sale Sheet Metal Fiber Laser Cutting Machine for Sale in USA
The F series is DXTECH’s entry-level machine, which can meet the basic cutting needs of thin metal sheets. It has an open platform and can cut 0.5-20mm metal sheets.If you want to know the price of this 3kw laser cutting machine, welcome to leave us a message.
Upgrade Series:
E – series
- With 15s exchange platform, it can save time and improve efficiency
- Power up to 6KW, can cut metal sheet within 25mm
It is suitable for industrial customers who require high processing efficiency.
FT – series
- It can cut sheet and tube at the same time
- One machine with two functions, saving cost
- Plate up to 25mm, pipe up to 6m/220mm
Suitable for customers who need to cut metal sheets and pipes, but pursue cost-effective
S – series
- Enclosed structure with fire and electricity protection
- Internal and external dual monitoring system
CUSTOMER TESTIMONIALS
Free Installation Training|Overseas Service Avaliable
DXTECH fiber laser cutter
Aviation aluminum beam
1) It has the characteristics of corrosion resistance, light weight, and high rigidity, which ensures high-speed movement during laser processing.
2) It has perfect dynamic performance, such as anti-distortion, anti-overturning, anti-deformation, etc., ensuring higher cutting accuracy.
Intelligent focusing laser head
Cooling:
Both the collimating lens and the focusing lens group are cooling accessories. Besides, the cooling airflow nozzle is added, which effectively protects the nozzle and the ceramics and prolongs the working time.
Chasing aperture:
Through the 35 mm aperture, the interference of stray light is effectively reduced.
Autofocus:
Without human interference, the focusing speed can reach 10m/min, and the repeatability is about 50 microns.
Thick-walled carbon steel Plate welding bed
1. High strength, not easily deformed
The heavy-duty design ensures that the bed will not be deformed for many years, it is stronger and has a high tensile.
2. More stable
We choose rectangular tubes with thicker walls than common machines. It is well welded and makes the flatbed more stable when it laser cuts sheet metal, ss plate, iron sheet, etc.
Technical Parameters
| Model | DXTECH-1530FP | DXTECH-2040FP | DXTECH-2560FP |
| Machine size | 4320*2250*1950mm | 5350*2800*1950mm | 5350*3350*1950mm |
| Working area | 1515*3030mm | 2020*4040mm | 2525*6050mm |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| Laser power | 1kW – 6kW | 1kW – 6kW | 1kW – 6kW |
| Laser | Multiple options | Multiple options | Multiple options |
| Focusing method | Auto/manual | Auto/manual | Auto/manual |
| Max. running speed | 140m/min | 140m/min | 140m/min |
Hot Sale Sheet Metal Fiber Laser Cutting Machine for Sale in USA
WARRANTY & GUARANTEE
2 YEARS FREE WARRANTY
1. DXTECH warrants its products and components to be free from defects in material or workmanship for a period of two (2) years from the date of original receipt.
2. During the warranty period, under normal use and maintenance, we will replace damaged parts for free. (The laser source is only repaired and not replaced.)
3. Outside the warranty period, you will get spare parts at cost price. Our engineers will still provide you with the best technical service within 24 hours.
LIFETIME TECHNICAL SUPPORT
DXTECH is a support-driven company. Expired the warranty period, we continue to provide lifetime free technical support to the original customers to ensure the stable, safe, and efficient operation of the machine.
Application
Hot sale sheet metal fiber laser cutting machine can cut a wide range of metals, even though highly reflective metals. For instance, carbon steel, stainless steel, aluminum, copper, brass, titanium, nickel, and various alloys. The sheet metal laser cutting machine has extensive applications in decoration, infrastructure, construction, microelectronic, advertising, kitchen appliance, automobile and other equipment manufacturing, and other industries.
